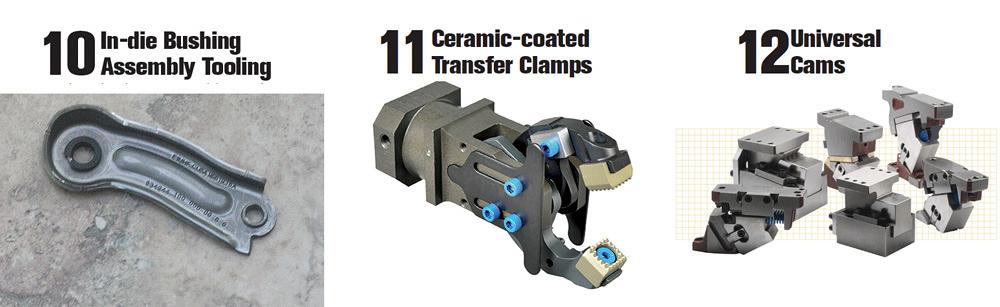

Photo 10 courtesy of J-Tech, Ingersoll, Ont., Canada. Photo 11 courtesy of PHD Inc., Fort Wayne, Ind. Photo 12 courtesy of Dayton Lamina Corp., Dayton.

PHD®’s ceramic-coated GRM pneumatic sheet metal transfer clamps are suitable for hot-forming applications. They are equipped with high-temperature seals and lube rated to 392 degrees F (200 degrees C) for sheets that are too hot to handle. The adjustable rotation stop allows for multiple jaw openings in one clamp.

In summary, normal drill bits are suitable for drilling holes in a variety of materials, mason drill bits are specifically designed for drilling holes in masonry materials, and SDS drill bits are designed for use in rotary hammers and hammer drills and are suitable for drilling large holes or for heavy-duty use in masonry materials. It is important to choose the correct type of drill bit for the job to ensure the best results and to extend the life of the bit.

The company says the dimpling process works with all metal stampings but is particularly effective with aluminum, which does not have a magnetic pull and so cannot be separated with magnetic separation devices.

J-Tech’s bushing assembly tooling facilitates the installation of NORGLIDE® bushings into a progressive or transfer die. The bushings can be installed top down, bottom up, or via cam action.

The dampers are as small as 41⁄2 by 73⁄4 by 7 ¼ in. Despite their small size, each unit can absorb up to 12 tons of reverse tonnage load.

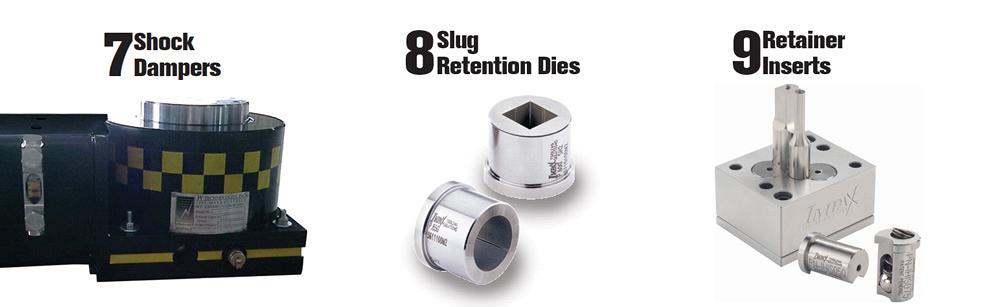

Photo 7 courtesy of W-Technologies Inc., Mount Carmel, Ill. Photo 8 courtesy of Wilson Tool International, White Bear Lake, Minn. Photo 9 courtesy of Wilson Tool International, White Bear Lake, Minn.

Wilson Tool’s HP Accu-Lock® retainer inserts are a do-it-yourself option. Stampers can create, modify, and reuse special retainers on-site and on demand.

The retainer inserts simplify the use of special retainers by eliminating the need for complicated jigs, inspection fixtures, and specialized knowledge to machine ball holes into the punch plate. In fact, the inserts eliminate the ball hole. Punches are held securely in place with a straight-line machined hole that can easily be created in-house, says the company. They are compatible with all ball lock punches.

Kate Bachman is a contributing editor for The FABRICATOR editor. Bachman has more than 20 years of experience as a writer and editor in the manufacturing and other industries.

“It’s the small things that … (insert your own ending here).” When it comes to uptime, sometimes it’s the small items that can make your workday easier. Following are many small devices that you may find helpful. Some of these are incremental improvements to standard die components; others are special gadgets that simply smooth the stamping process to extend uptime.

Integrating these processes is intended to reduce the costs of tapping in a secondary operation and to improve part quality and process reliability, according to the tools’ distributor, Champion Tools, St. Charles, Mo. The integrated process enhances stability and tensile resistance of the formed threads because the grain structure of the metal is uninterrupted. It also reduces burrs and facilitates assembly.

The system positions and locks two plates together without the need for lubricants. This is especially useful for disassembling and reassembling die plates for routine maintenance or repairs. The rollers allow the toolmaker to simply lift the plate out of the tool. There is no need to guide the plate up and off of the guide pins, as is typically done, saving time. When aligned, the plate quickly drops back into place at the exact center as it was before being disassembled.

These STEINEL® cages are designed with cylindrical rollers instead of ball bearings. The shape of the formed rollers and their arrangement within the roller cage increase the surface area that touches the guidepost.


The autoindexing dimpler provides a seven-position mechanical rotary index that installs a two-dimple pattern in stamped parts. It operates in concert with press action. As the press closes the die, the dimpler bottoms out, creating dimples. As the die opens, the dimpler extends from its dimpling position and rotates to the next position so that the dimples in each part are in a different location. That maintains a small air gap between stamped parts. (See a video of the device in action at www.thefabricator.com/video/welker-auto-indexing-dimpler.com)
